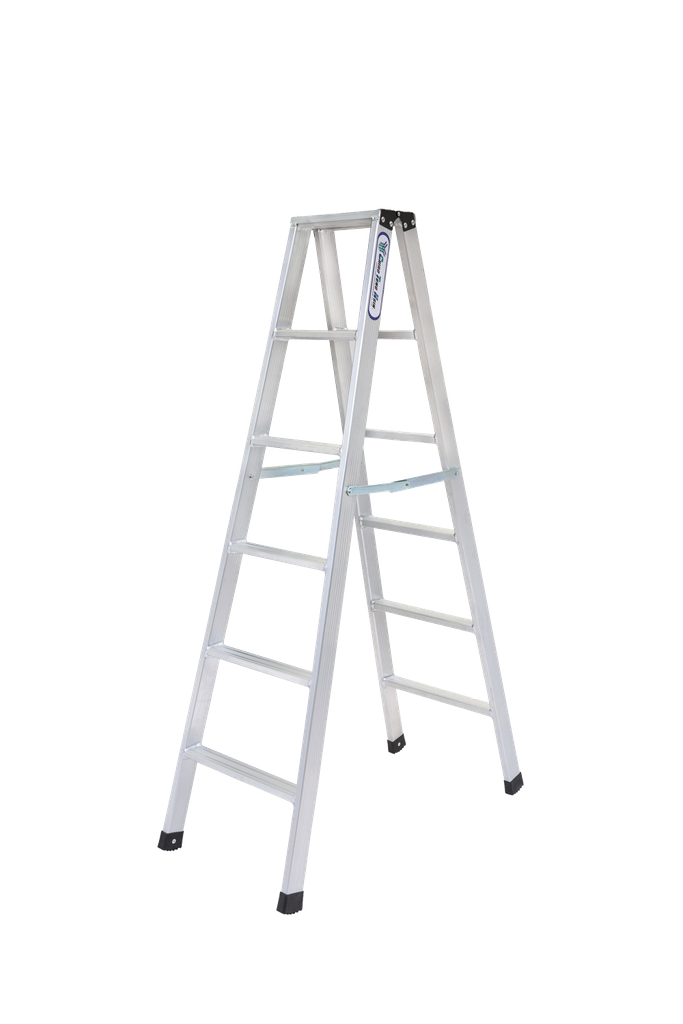

ACL-06 Aluminum Stepladder
ACL Stepladder series
Performance Overview
Load Capacity |
Certification |
Material | Color | Professional Manner |
200KG |
SGS Loading testing HL40060/2024 |
Aluminum | Sliver | Welding |
Product Description
- Vertical struts and rungs joined by welding.
- CmC and ALCOTEC heli-arc welding material.
- 60mm tread surface provides more stability when stepping on the ladder.
- The fixed iron top cap enhances the overall structure of the ladder, making it more sturdy.
- An improved version combining aluminum ladders and welded ladders, with additional iron reinforcements and side connecting rods.
- The steps are welded on all four sides, overcoming the common issue of breakage due to frequent use.
- Recommended for use in heavy industrial settings, construction sites, and tech companies.
- The folded side height is 126mm.
Detailed Description
Feature |
Details/Size |
Load Capacity |
200Kgs |
Safety Sticker | 200Kgs |
Material | Aluminum |
Color | Sliver |
Certification | SGS Loading testing HL40060/2024 |
Stepladder Height | 1755mm |
Top Width | 320mm |
Base Width | 525mm |
Base Depth | 1060mm |
Approx. Weight Kgs | 7.67Kgs |
Step Spacing | 300mm |
Number of Steps | 5+1 |
* Product size and weight are for reference only. Please refer to the actual product for actual size.
