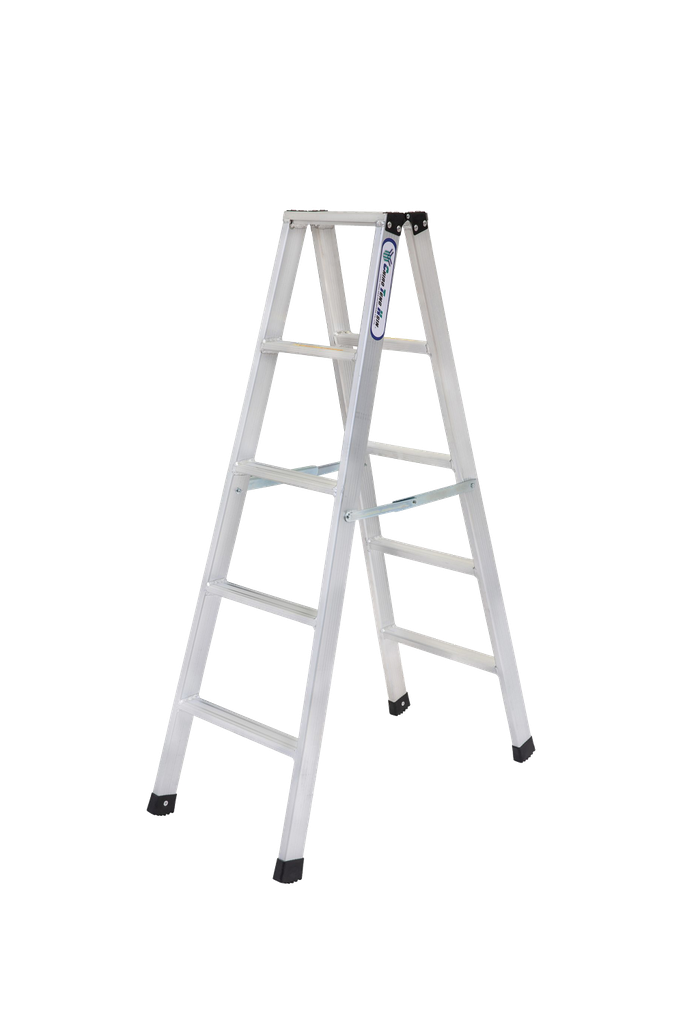

ACL-05 Aluminum Stepladder

ACL Stepladder series
https://www.laddertool.com/web/image/product.template/78/image_1920?unique=1c6dba8
Performance Overview
Load Capacity
Certification
Material
ColorProfessional Manner
200KG
SGS Loading testing HL40060/2024Aluminum
SliverWelding
Product Description
  • Vertical struts and rungs joined by welding.
  • CmC and ALCOTEC heli-arc welding material.
  • 60mm tread surface provides more stability when stepping on the ladder.
  • The fixed iron top cap enhances the overall structure of the ladder, making it more sturdy.
  • An improved version combining aluminum ladders and welded ladders, with additional iron reinforcements and side connecting rods.
  • The steps are welded on all four sides, overcoming the common issue of breakage due to frequent use.
  • Recommended for use in heavy industrial settings, construction sites, and tech companies.
  • The folded side height is 126mm.

This combination does not exist.

Detailed Description

Feature
Details/Size
Load Capacity
200Kgs
Safety Sticker
200Kgs
Material
Aluminum
Color
Sliver
Certification
SGS Loading testing HL40060/2024
Stepladder Height
1460mm
Top Width
320mm
Base Width
495mm
Base Depth
950mm
Approx. Weight Kgs
6.41Kgs
Step Spacing
300mm
Number of Steps
4+1

* Product size and weight are for reference only. Please refer to the actual product for actual size.
