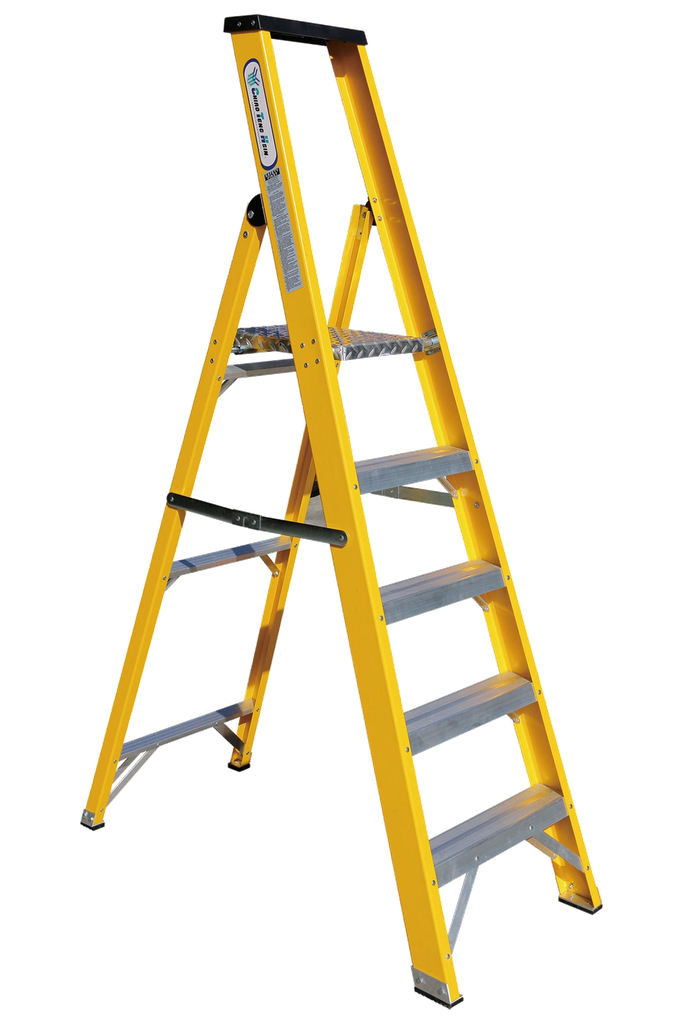

FPS-1 Fiberglass Stepladder with Platform
FPS-1 Fiberglass Stepladder with Platform
Performance Overview
| Load Capacity |
Certification |
Material | Color | Professional Manner |
| 150Kgs |
SGS EN131: HL20414/2009 SGS AS/NZS: HL60058B/2009 SGS Material test :TV-08-01364X |
Fiberglass | Yellow | Screwing |
Product Description
- Durable Aluminum alloy “C” Channel side rails in high visibility safety yellow

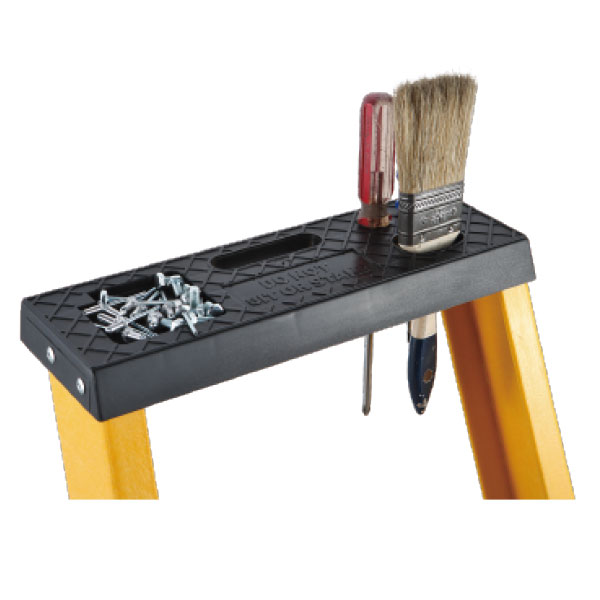

- Useful ABS tool-case on top for putting different hand tools
- Super tough copolymer top for strength and durability

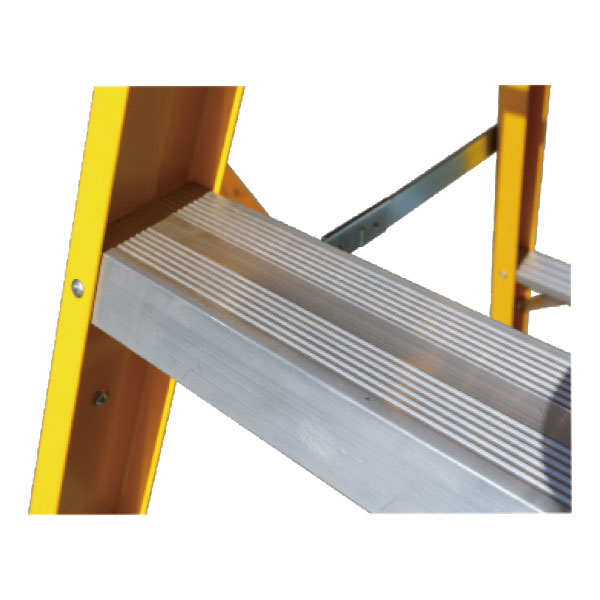

- Slip-resistant serrated aluminum steps for safe climbing

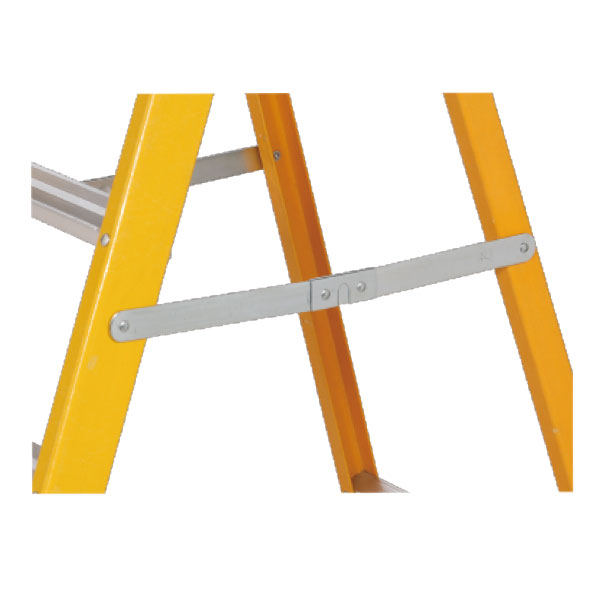

- Inside spreader arms complete with “wrap-around” brackets to
strengthen spreader to rail connection and protect spreader arms
during storage/loading/transport - Reinforced with Zinc coated steel diagonal braces on the front of
every other step and double bracing on bottom step for added

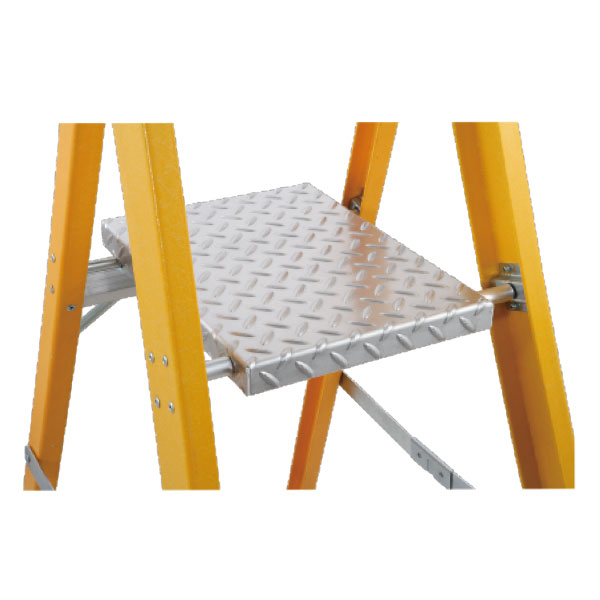

strength and stiffness - Big platform is made in aluminum and safety and comfortable standing for user
Detailed Description
| Model | Step NO. | Closed Height | Open Height | Ground To Platform Height | Bottom Width | Bottom Depth | Approx. Weight(KG) |
| FPS-1-04 | 3+1 | 1685 | 1570 | 960 | 495 | 945 | 8.05 |
| FPS-1-05 | 4+1 | 1933 | 1805 | 1195 | 523 | 1105 | 9.14 |
| FPS-1-06 | 5+1 | 2180 | 2040 | 1430 | 550 | 1265 | 10.31 |
| FPS-1-07 | 6+1 | 2433 | 2270 | 1660 | 580 | 1450 | 11.26 |
| FPS-1-08 | 7+1 | 2685 | 2505 | 1895 | 610 | 1615 | 12.65 |
| FPS-1-09 | 8+1 | 2935 | 2740 | 2130 | 640 | 1795 | 13.7 |
| FPS-1-10 | 9+1 | 3185 | 2980 | 2370 | 665 | 1965 | 15.08 |
| FPS-1-12 | 11+1 | 3683 | 3440 | 2830 | 720 | 2350 | 19.26 |
* The information is given in distance between two steps 250mm.
* The color is able to change to Orange, MOQ is one 40ft HQ container.
