Home | Product | Extension Ladder series | FP Extension Ladder
E-mail | Print |

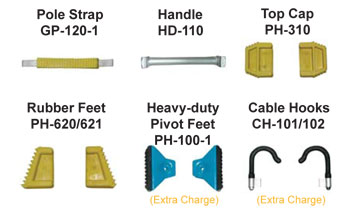

Safety Features
• Pole Strap: Provides added stability

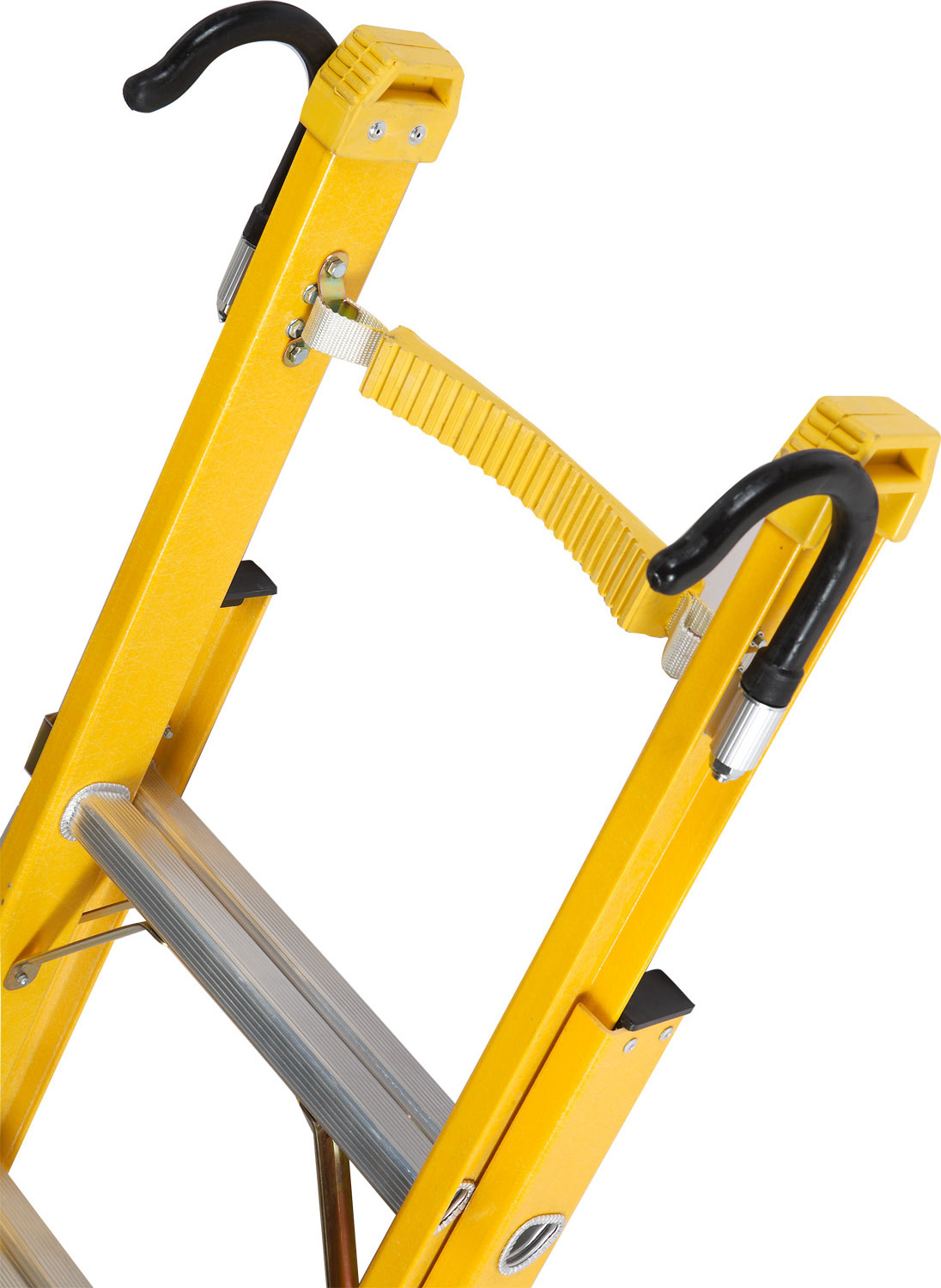

• Handle: Special easy-to-grip knob design
• Cable Hooks: (extra charge)
• Heavy-duty Pivot Feet: Large heavy-duty pivot feet with slip-resistant rubber pads and ice pick (extra charge)
• Yellow Rubber Feet: Aptotic type shoes that have a non-slipping lower surface
• Top Cap: Top cap made by rubber and ensure good protection

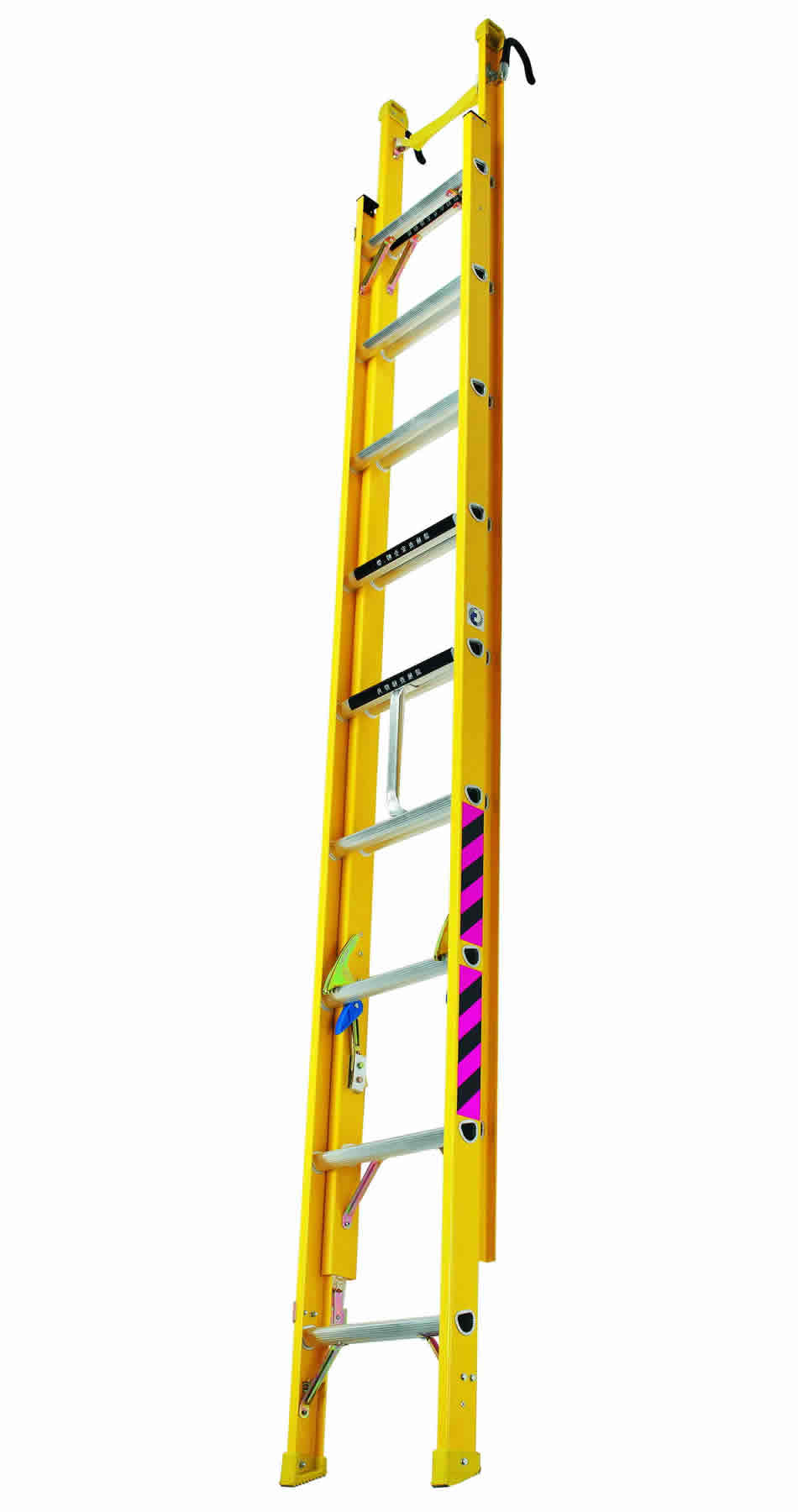

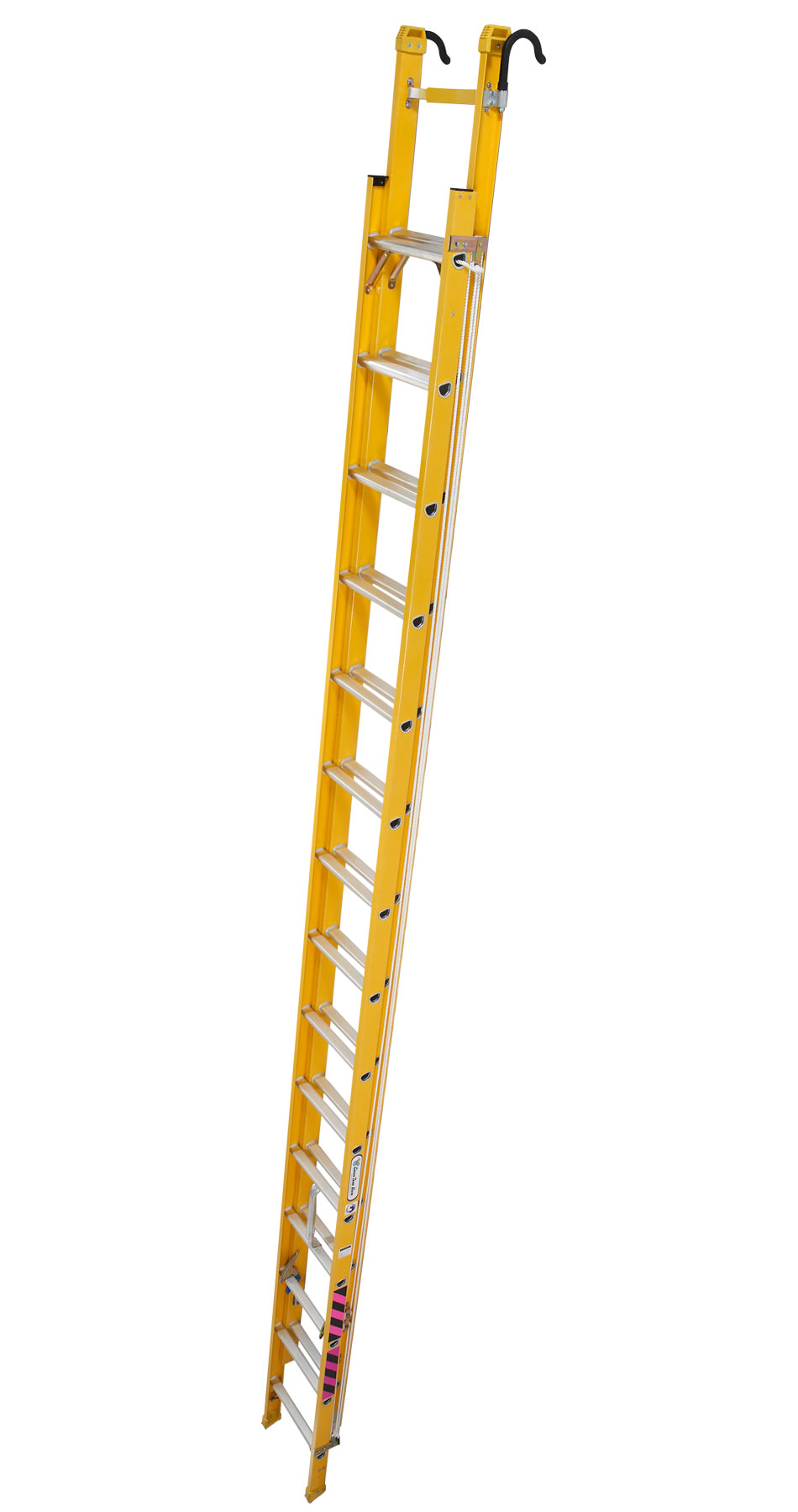

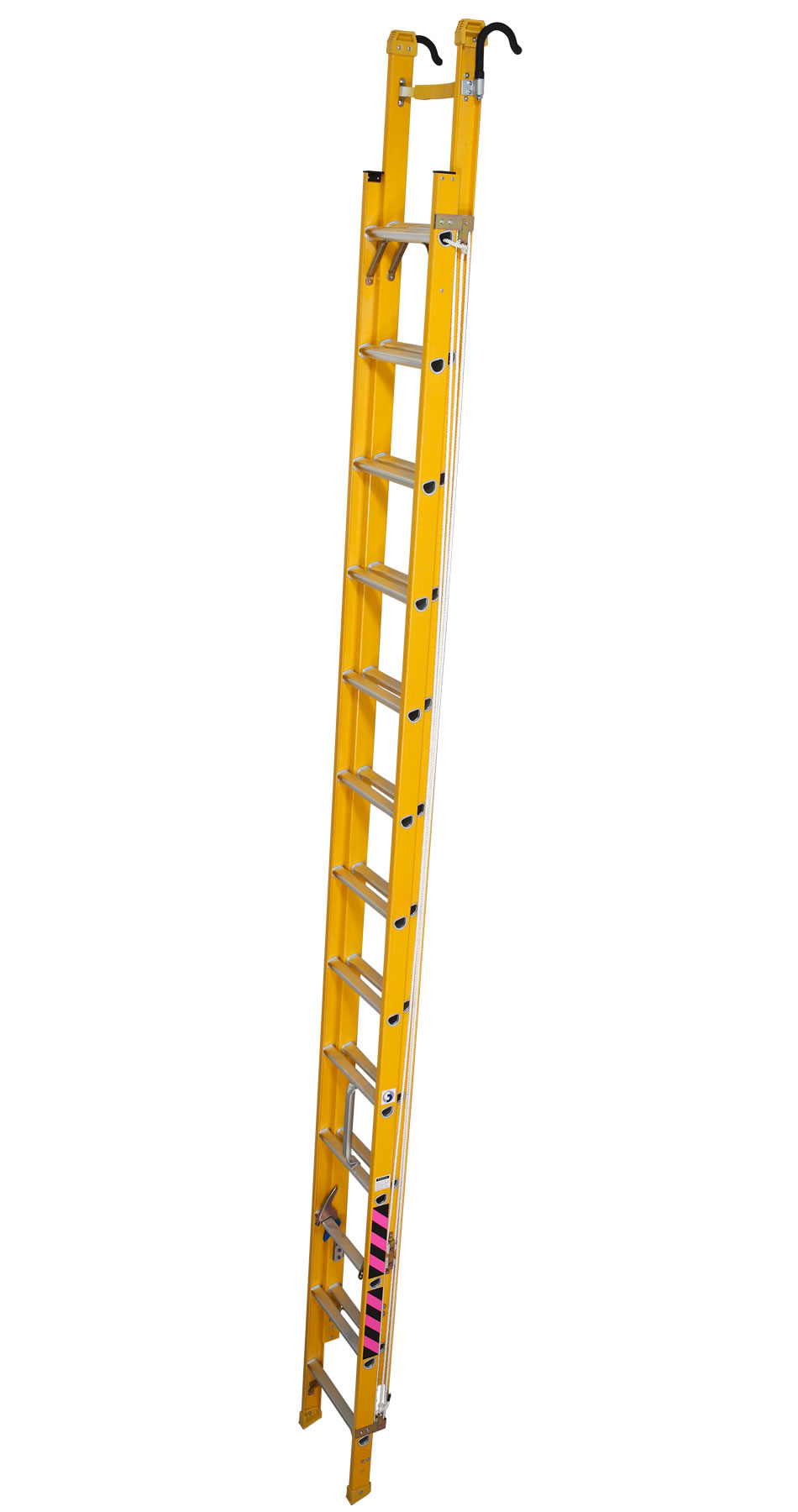

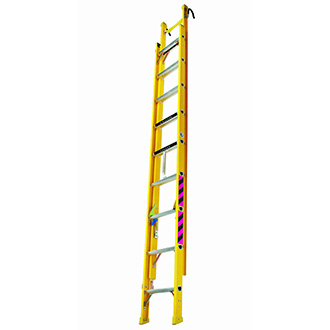

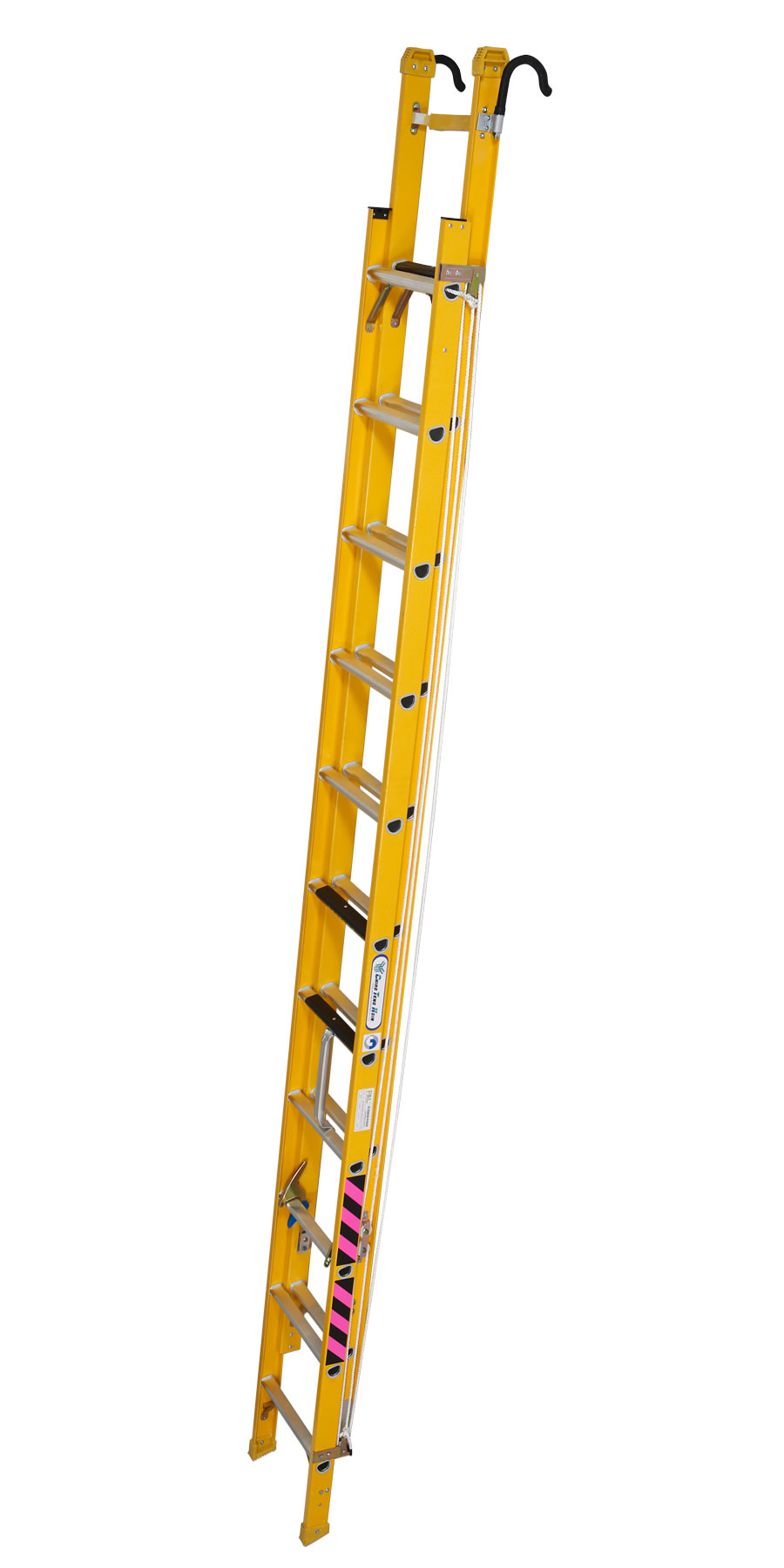

FP Fiberglass D-rung Extension Ladder

Performance Overview
Load Capacity Certification Material Color Professional
150Kgs SGS EN131: HL70244A/2008 SGS AS/NZS: HL60057D/2009  SGS Material test :TV-08-01364X Fiberglass Yellow Screwing
HIGH STRENGTH TO WEIGHT RATIO PROVIDES AN ECONOMICAL ALTERNATIVE FORGENERAL CONTRACTORS AND DIY WORK

Product Description
• Durable non-conductive fiberglass side rails in high visibility safety yellow
• Rung through rail design
• Slip-resistant serrated “D” rungs for safe climbing and comfort
• Traditional raise from the rear pulley design

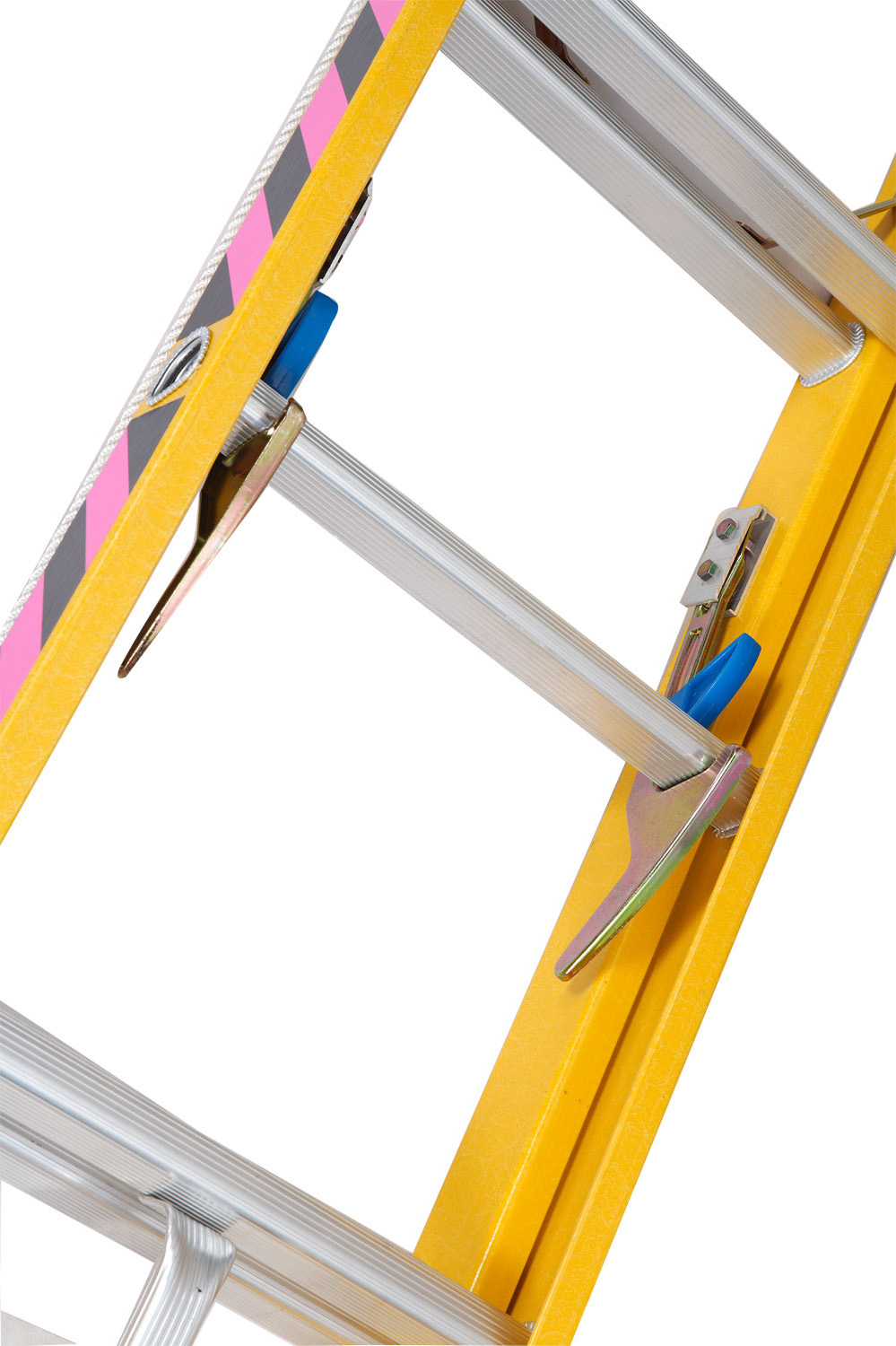

• Premium heavy-duty rung locks
• Designed for use by electrical engineers engaged in work on power lines

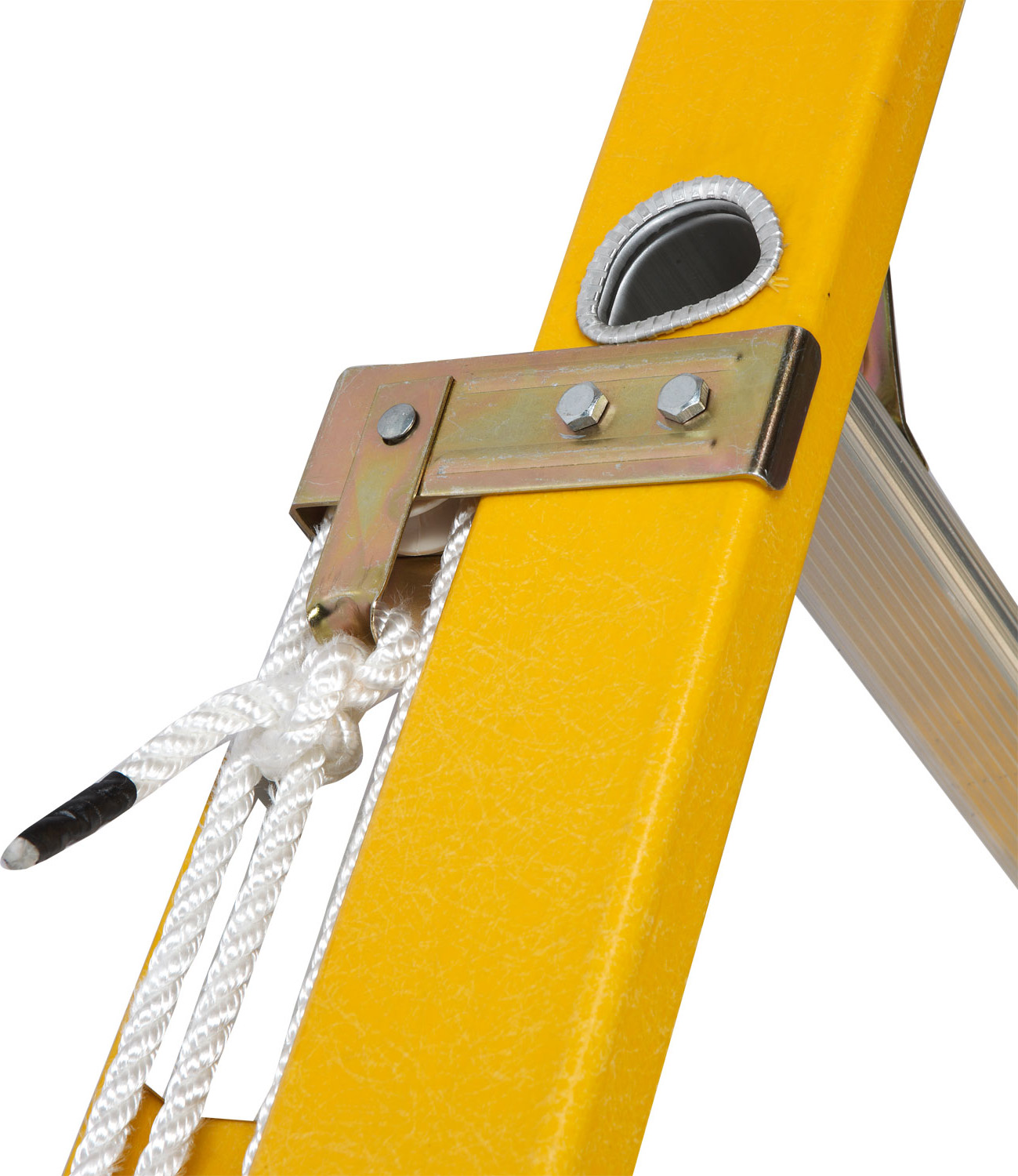

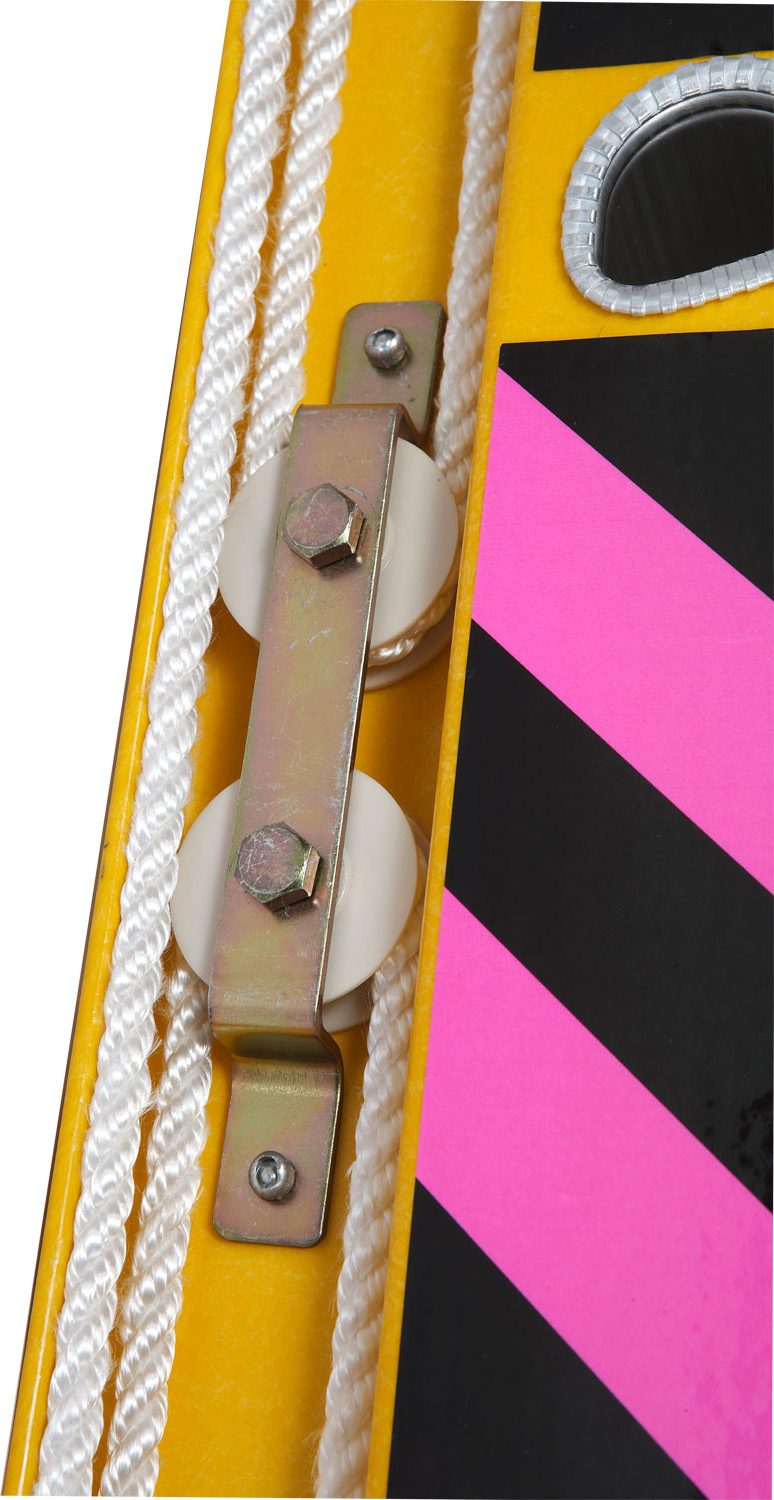

• Split section pulley and Bracket system with locking device to fix at required height
• All come with extra pole strap, handle, warning message and yellow rubber feet


Specifications Dimensions
MODEL SIZE CLOSED
HIGHT
HIGHEST STANDING
HEIGHT
BASE
WIDTH
TOP
WIDTH
APPROX. WEIGHT (Kgs)
FP-20 20" 3240 5080 415 395 17.4
FP-24 24" 3950 6260 415 395 21.2
FP-28 28" 4550 7160 415 395 24.28
FP-32 32" 5150 8360 415 395 27.04
FP-40 40" 6500 10100 415 395 33


The information is given in distance between two stpe 300 mm.
The distance bewteen two step in 330mm is also avaliable.
